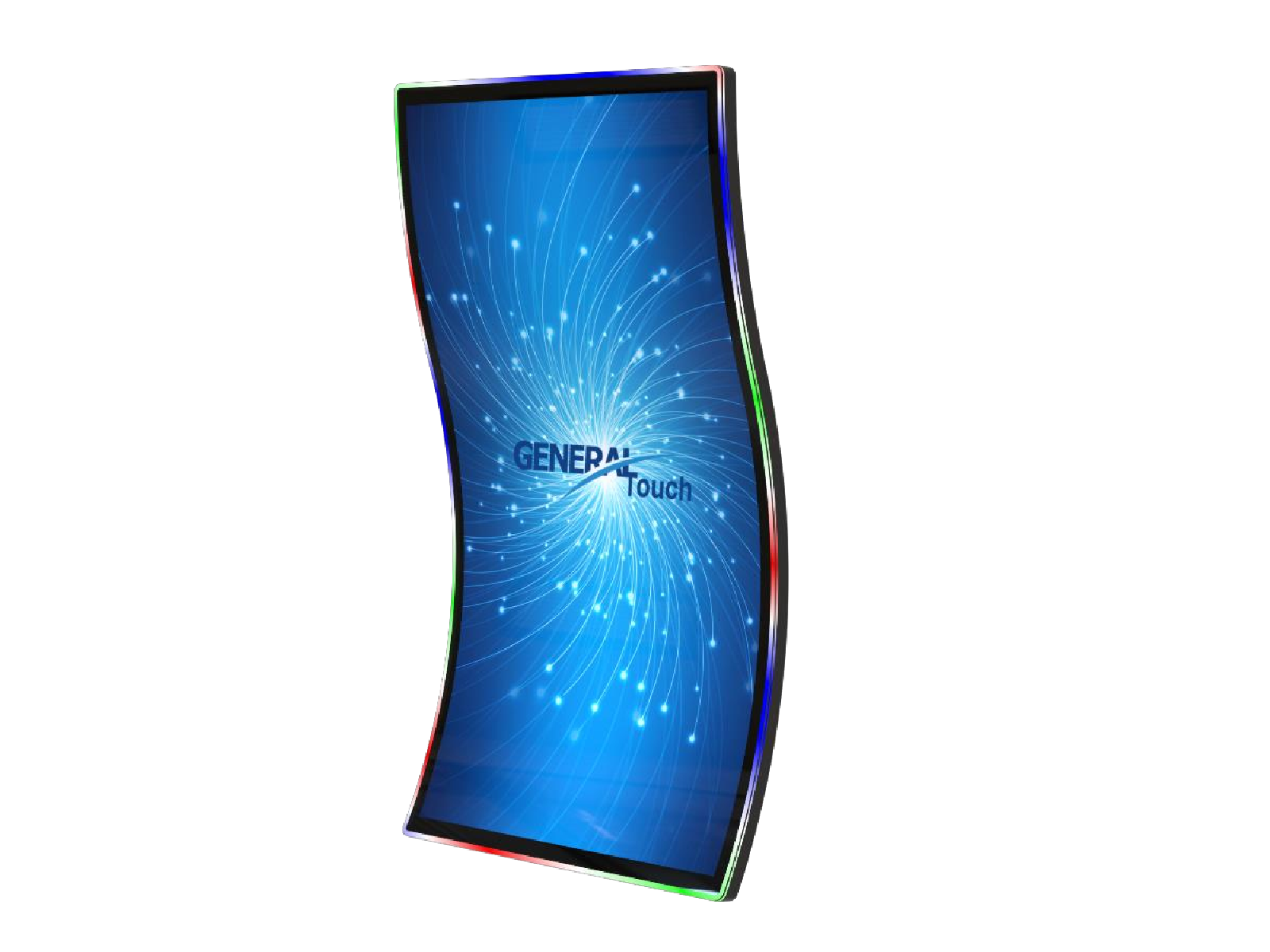

OTS557 55″ 4K S Curved LED-edge

Product Name

55 Inch Curved Touchmonitor

Model

OTS557

LCD Panel Parameters

Display Technology

Active Matrix TFT-LCD with LED Backlight

Aspect Ratio

16 : 9

Active Area (W × H)

1209.6mm × 680.4mm

Native Resolution

3840 × 2160 @ 60Hz

Response Time (Typ.)

8ms

Display Colors

1.07B

Luminance (Typ.)

550nits

Contrast Ratio (Typ.)

4000 : 1

Viewing Angle (Typ.)

Horizontal (left/right) CR≥10 89°/89°

Vertical (up/down) CR≥10 89°/89°

Touch Screen Parameters

Touch Technology

PCAP

Cover Glass Treatment

Strengthened

Impact Resistance Level

IK07

Thickness (Total)

4.5mm

Light Transmission

≥83%

Response Time (Typ.)

10 ms

Touch Screen Interface

USB

Touch Point

10

Overall Parameters

Case/Bezel Color

Black

Mounting Options

VESA: 600mm × 400mm

Outline Dimensions (W×H×D)

751.0mm × 1243.7mm × 323.5mm, curvature radius 1206.8mm & 993.2mm

Power Supply

Input Voltage Range:
Monitor: +24 VDC ± 5%, 4 PIN plug or 6 PIN mating Molex 3901-2060
RGB LED Lights: +12VDC ± 5%, mating Molex 43025-0600
Optional LED controller (External): +12VDC ± 5%, Coaxial power jack 2.5mm pin outer diameter

On Screen Display (OSD)

Control (External): Power, Auto, Up, Down, Menu

Power Consumption (Max.)

150W (Monitor without RGB LED Lights) 40W (RGB LED Lights)

Operating Altitude

≤3000 m

Temperature Range

Operating: 0℃ to 40℃, storage: -20℃ to 60℃

Humidity (Non Condensing)

Operating: 20% to 80%, storage: 10% to 90%

I/O

HDMI, HDMI, DP, USB (Type B）

Accessories

Optional

Carton Box Dimensions

1445mm (L) × 340mm (W) × 940mm (H), 1 unit in one carton

Weight

Net: TBD, Gross: TBD

MTBF

50,000 hours demonstrated

LED Lights Color

Multicolor

LED Lights Location

4 LED lights bar (Front & Edge)

LED Controller (External)

Optional

Agency Approvals

CE, FCC, UKCA

Warranty

1 year

Ordering Information

Model

Part Number

Description

OTS557-RC5000-UD5440-1.0

10202020087R

55” “S type”, UHD, 16:9, 550nits, PCAP, USB, HDMI/HDMI/DP, 4 LED lights bar (Front & Edge)
