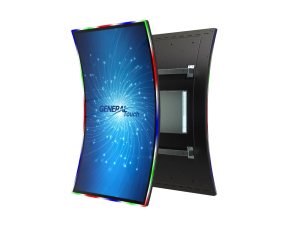

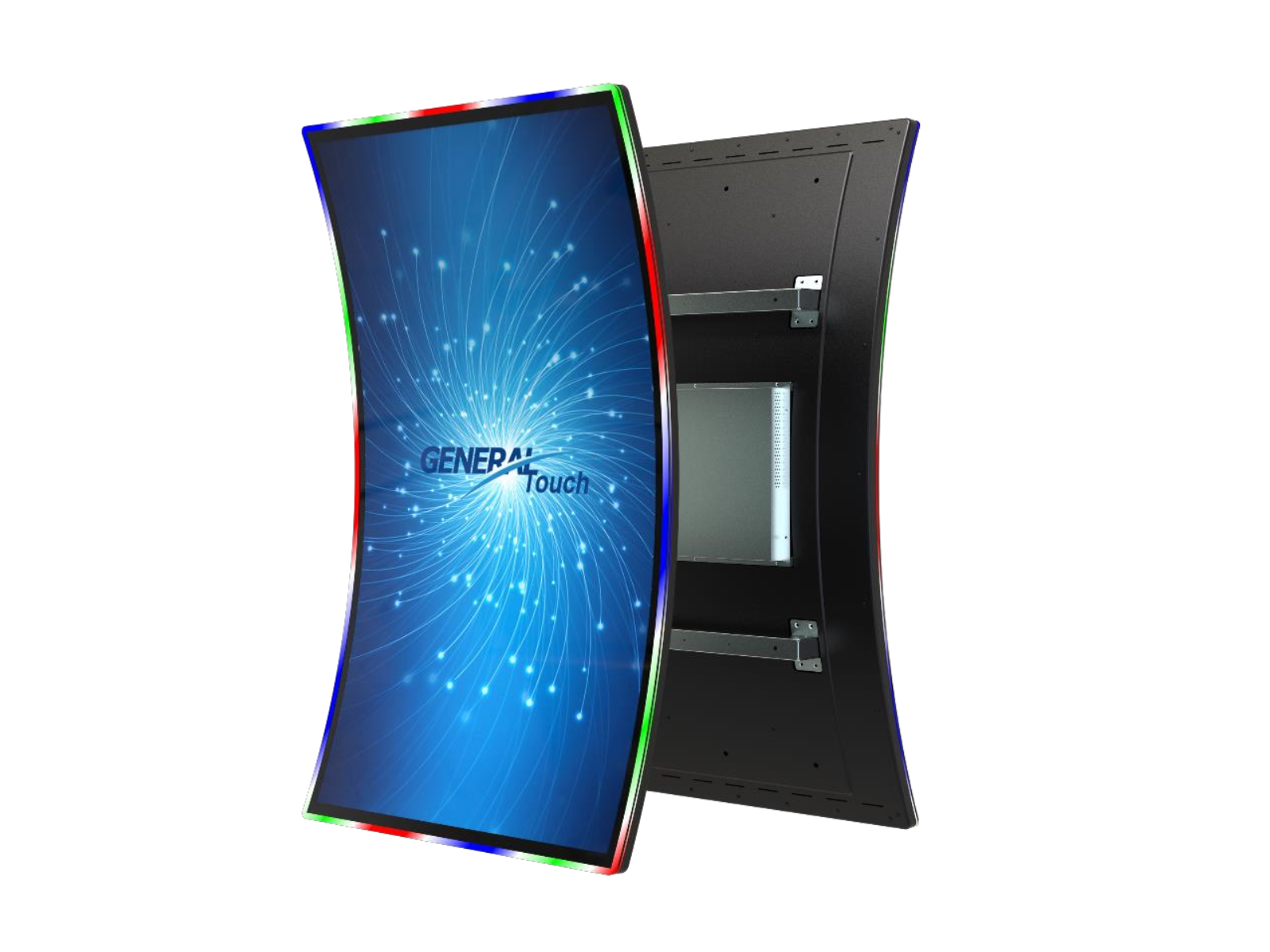

OTC557 55″ 4K C Curved LED-edge

Brief Description:

◼ Curved shape, C design, unique and interactive motivation

◼ No hot spot, dark spot, dark corner, high level uniformity

◼ Rear fire LEDs, glow style

◼ 4K resolution

◼ PCAP powered by General Touch, quality assurance

◼ Plastic back cover, light and cost saving

◼Well sealed non LED light leakage

◼Closed frame, compatible with various application


Product Detail

Product Tags

Name

55 Inch Curved Touchmonitor

Model

OTC557

LCD Panel Parameters

Display Technology

Active Matrix TFT-LCD with LED Backlight

Aspect Ratio

16:9

Active Area (W x H)

1209.6mm × 680.4mm

Native Resolution

3840 × 2160 @ 60Hz

Response Time (Typ.)

8ms

Display Colors

1.07B

Luminance (Typ.)

550nits

Contrast Ratio (Typ.)

4000:1

Viewing Angle (Typ.)

Horizontal (left/right): CR≥10 89°/89°

Vertical (up/down): CR≥10 89°/89°

Touch Screen Parameters

Touch Technology

PCAP

Surface Treatment

Tempered

Thickness (Total)

4.5mm

Light Transmission

≥ 83%

Response Time (Typ.)

10ms

Touch Screen Interface

USB

Touch Point

10

Overall Parameters

Case/Bezel Color

Black

Mounting Options

VESA: 600mm × 400mm

Outline Dimensions (W×H×D)

768.9mm × 1270.6mm × 206.1mm, curvature radius 1494mm

Power Supply

Input Voltage Range:Monitor: +24 VDC ± 5%, 4 PIN plug or 6 PIN mating Molex 3901-2060

RGB LED Lights: +12VDC ± 5%, mating Molex 43025-0600

Optional LED controller (External): +12VDC ± 5%, Coaxial power jack 2.5mm pin outer diameter

On Screen Display (OSD)

Control (External): Power, Auto, Up, Down, Menu

Power Consumption (Max.)

150W (Monitor without RGB LED Lights), 40W (RGB LED Lights)

Operating Altitude

≤ 3000m

Temperature Range

Operating: 0to 40, storage: -20to 60

Humidity (Non Condensing)

Operating: 20% to 80%, storage: 10% to 90%

I/O

HDMI, HDMI, DP, USB (Type B)

Accessories

Cables: USB × 1, 1.5m Length

Carton Box Dimensions

1445mm (L) × 340mm (W) × 940mm (H), 1 unit in one carton

Weight

Net: 34kg, Gross: 42kg

MTBF

50,000 hours demonstrated

LED Lights Color

Multicolor

LED Lights Location

4 LED lights bar (Front, Edge, Back)

LED Controller (External)

Optional

Agency Approvals

CE, FCC

Warranty

1 year



Ordering Information

Model

Part Number

Description

OTC557-RC5000-UD5440-2.0

10202020044R

55” “C type”, UHD, 16:9, 550nits, PCAP, USB, HDMI/HDMI/DP, LED lights, front, edge, back
