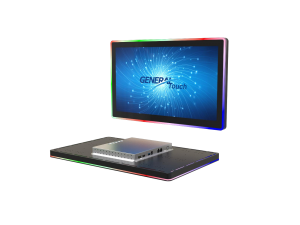

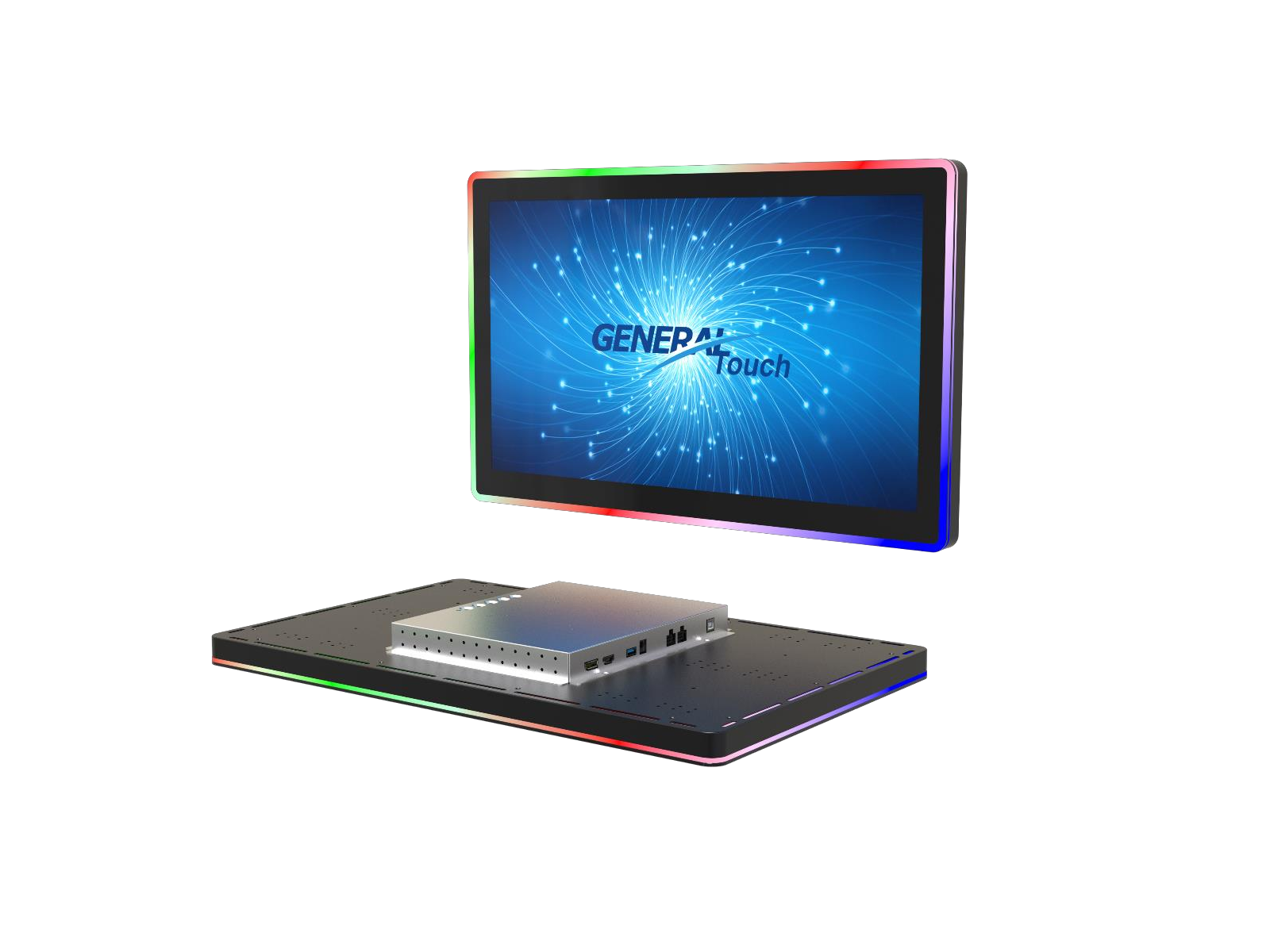

OTL247 23.8″ LED-edge

Brief Description:

◼ High-quality PCB-mounted LEDs, no dark corners
◼ LED lights bar for surrounding display
◼ RGB LED light bar available
◼ True-flat, black closed-frame designs
◼ 10-touch PCAP for windows 7 or later, Linux 4.4 or later


Product Detail

Product Tags

Name

23.8 Inch LED-Framed Touchmonitor

Model

OTL247

LCD Panel Parameters

Display Technology

Active Matrix TFT-LCD with LED Backlight

Aspect Ratio

16 : 9

Active Area (W × H)

527.04 × 296.46 mm

Native Resolution

1920 × 1080 @ 60 Hz

Response Time (Typ.)

14 ms

Display Colors

16.7 M

Luminance (Typ.)

250 nits; with PCAP 212 nits

Contrast Ratio (Typ.)

1000 : 1

Viewing Angle (Typ.)

Horizontal (left/right) CR≥10 89°/89°

Vertical (up/down) CR≥10 89°/89°

Touch Screen Parameters

Touch Technology

Projected Capacitive (PCAP)

Surface Treatment

Tempered

Optional: Anti-Glare

Thickness (Total)

4.3 ± 0.3 mm

Light Transmission

≥83%

Response Time (Typ.)

8 ms

Touch Screen Interface

USB

Touch Point

10

Overall Parameters

Case/Bezel Color

Black

Mounting Options

VESA: 100 × 100 mm, 75 × 75 mm

Outline DimensionsW×H×D

591.00 mm × 367.00 mm × 49.80 mm

Power Supply

 Monitor: Input Voltage Range: +12VDC ± 5%

 RGB LED Lights: +5VDC ± 5%

 Optional LED controller(External): +12VDC ± 5%

On-Screen Display (OSD)

Control (back): Power, Auto, Up, Down, Menu

Power Consumption (Max.)

36W ( Monitor without RGB LED Lights) 30W (RGB LED Lights)

Operating Altitude

≤3000 m

System support

Win7 or later, Linux 4.4 or later

Temperature Range

Operating: 0℃ to 40℃, storage: -20℃ to 60℃

Humidity (Non-Condensing)

Operating: 20% to 80%, storage: 10% to 90%

I/O

VGA, DVI, DP, USB (Type B)

Accessories

Optional

Carton Box Dimensions

(2 units in one carton)

690 mm (L) × 260 mm (W) × 460 mm (H)

Weight

Net:  8 kg

Gross: 20 kg

MTBF

50,000 hours demonstrated

LED Lights Color

Multicolor

LED Lights Location

4 LED lights bar (Front, Back & Edge)

LED Controller (external)

Optional

Agency Approvals

CCC, CE, FCC

Warranty

3 Years



Ordering Information

Part Name

Part Number

Description

OTL247-RC5000-UP2F50-2.0

110303691R

23.8”, 16:9, 250 nits, P-Cap, USB, VGA/DVI/DP, LEDlights Location Front, Edge & Back
