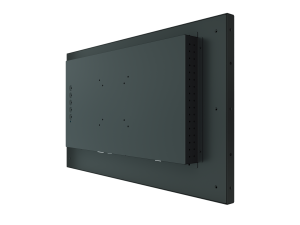

OTL223 21.5″ 5-Wire Resistive

•Open frame, with Industry quality and long lifespan

•Range size from 15 inch to 21 inch, one stop for you

•Industrial-grade raw materials, better for industry

•Touch function unaffected by EMI/RF interference

•3 years warranty

•Works in harsh environments even with oil, grease, or liquids

Product Detail

Name	21.5 Inch Open Frame Touchmonitor
Model	OTL223
LCD Panel Parameters
Display Technology	Active Matrix TFT-LCD With LED Backlight
Aspect Ratio	16:9
Active Area (W x H)	476.64mm × 268.11mm
Native Resolution	1920×1080@60Hz
Response Time (Typ.)	18 ms
Display Colors	16.7 million
Luminance (Typ.)	250nits, with Screen 200nits
Contrast Ratio (Typ.)	3000:1
Viewing Angle (Typ.)	Horizontal (left/right) CR≥10 89°/89°
Viewing Angle (Typ.)	Vertical (up/down) CR≥10 89°/89°
Touch Screen Parameters
Touch Technology	5-Wire Resistive
Haze	8%±3%
Active Area (W × H)	477.7mm × 269.2mm ± 0.3mm
Thickness (Total)	2.2mm±0.3mm
Light Transmission	≥80%
Response Time	≤15 ms
Touch Screen Interface	USB, RS232
Surface Hardness	≥3H
Overall Parameters
Case/Bezel Color	Black
Mounting Options	VESA: 75mm × 75mm,100mm ×100mm, Side Mounting
Outline Dimensions（W×H×D）	515.6mm × 312.2mm × 57.5mm
Power Supply	Input Voltage Range: +12V DC ± 5%, Coaxial power jack 2.5mm pinouter diameter
On Screen Display (OSD)	Control (Back): Power, Auto, Up, Down, Menu
Power Consumption	MAX: 22W
Speaker	Optional
Operating Altitude	≤3000 m
Temperature Range	Operating: 0℃ to 40℃, Storage: -20℃ to 60℃
Humidity (Non Condensing)	Operating: 20% to 80%, Storage: 10% to 90%
I/O	VGA, DVI, HDMI, USB (Type B, For Touch), RS232
Accessories	Cables: VGA×1, USB×1, 1.5m Length
Carton Box Dimensions	640mm (L) × 245mm (W) × 430mm (H), 2 units in one carton
Weight	Net: 5.9kg Gross: 14kg
MTBF	50,000 hours demonstrated
Agency Approvals	CCC, CE, FCC, UKCA
Warranty	3 years

Ordering Information
Model	Part Number	Description
OTL223-RE3000-CH2200-2.0	10204010008R	21.5”, 16:9, 250nits, 5-Wire Resistive, USB & RS232, VGA & DVI & HDMI, Black
