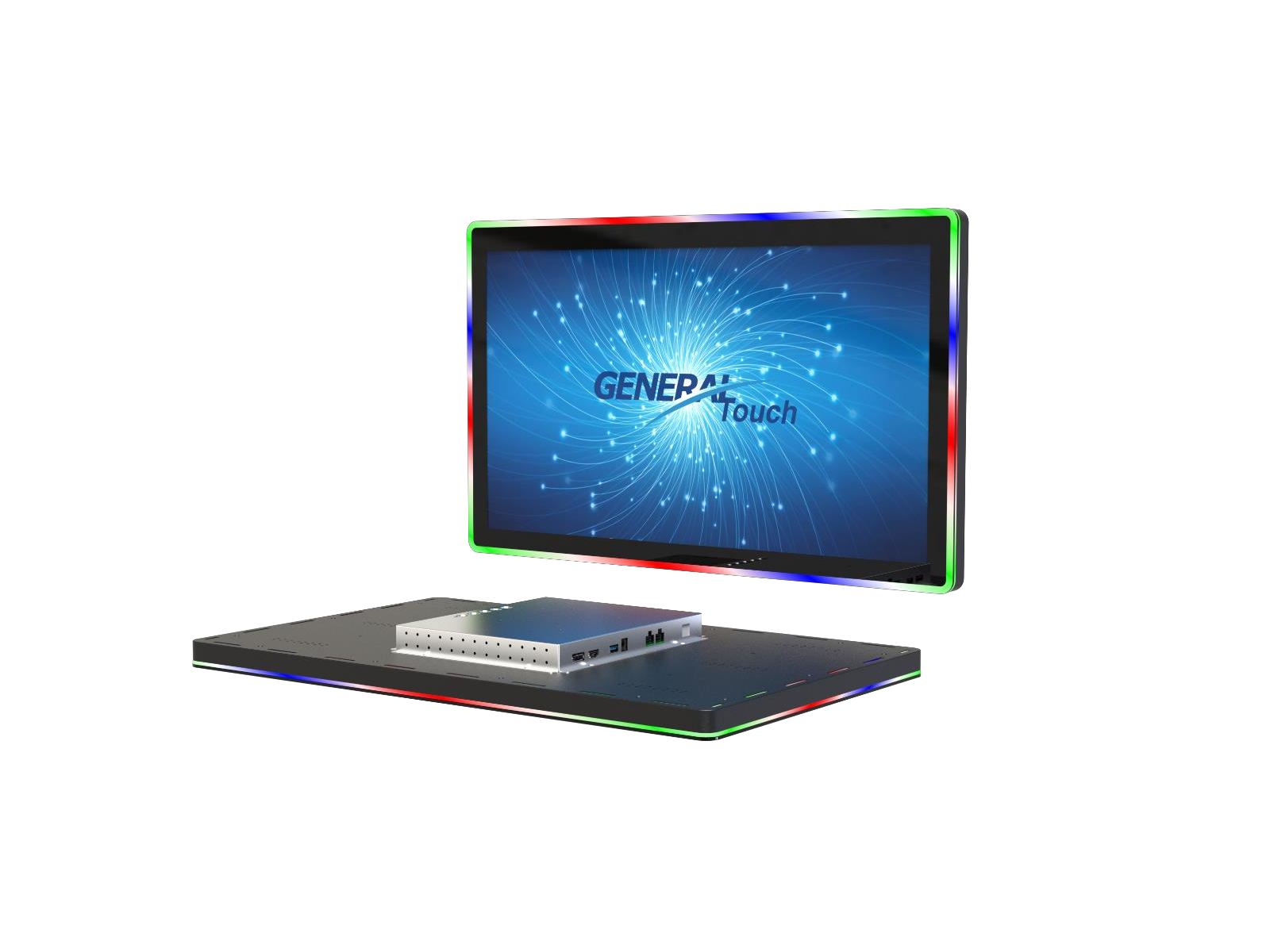

OML277 27″ LED-edge Non-touch

Name

27 Inch LED-Framed Monitor

Model

OML277

LCD Panel Parameters

Display Technology

Active Matrix TFT-LCD with LED Backlight

Aspect Ratio

16:9

Active Area (W × H)

597.89mm × 336.31mm

Native Resolution

1920 × 1080 @ 60Hz

Response Time (Typ.)

14ms

Display Colors

16.7M

Luminance (Typ.)

300nits

Contrast Ratio (Typ.)

1000:1

Viewing Angle (Typ.)

Horizontal (left/right) CR≥10 89°/89°

Vertical (up/down) CR≥10 89°/89°

Screen Parameters

Cover Glass Treatment

Strengthened

Cover Glass Surface Treatment

Optional: Anti-glare

Impact Resistance Level

IK07

Thickness (Total)

3.0 mm

Light Transmission

≥90%

Overall Parameters

Case/Bezel Color

Black

Mounting Options

VESA: 100mm × 100mm, 75mm × 75mm

Outline Dimensions (W×H×D)

660.0mm ×404.0mm ×54.4mm

Power Supply

Input Voltage Range:

Monitor: +12VDC ± 5%, Coaxial power jack 2.5mm pin outer diameter

RGB LED Lights: +12VDC ± 5%, mating Molex 43025-0600

Optional LED controller (External): +12VDC ± 5%, Coaxial power jack 2.5mm pin outer diameter

On Screen Display (OSD)

Control (Back): Power, Auto, Up, Down, Menu

Power Consumption (Max.)

30W (Monitor without RGB LED Lights)
25W (RGB LED Lights)

Operating Altitude

≤ 3000m

Temperature Range

Operating: 0℃ to 40℃, storage: -20℃ to 60℃

Humidity (Non Condensing)

Operating: 20% to 80%, storage: 10% to 90%

I/O

VGA, DVI, DP

Accessories

Optional

Carton Box Dimensions

785mm (L) ×275mm (W) ×533mm (H), 2 units in one carton

Weight

Net: 9 kg, Gross: 25 kg

MTBF

50,000 hours demonstrated

LED Lights Color

Multicolor

LED Lights Location

4 LED lights bar (Front, Edge & Back)

LED Controller (External)

Optional

Agency Approvals

CE, FCC, UKCA

Warranty

3 years

Ordering Information

Model

Part Number

Description

OML277-R03000-0P3F50-3.0

27″, FHD, 16:9, 300nits, non-touch, VGA/DVI/DP, LED lightsLocation front, edge & back

Drawings and Spec Sheet

Spec Sheet
