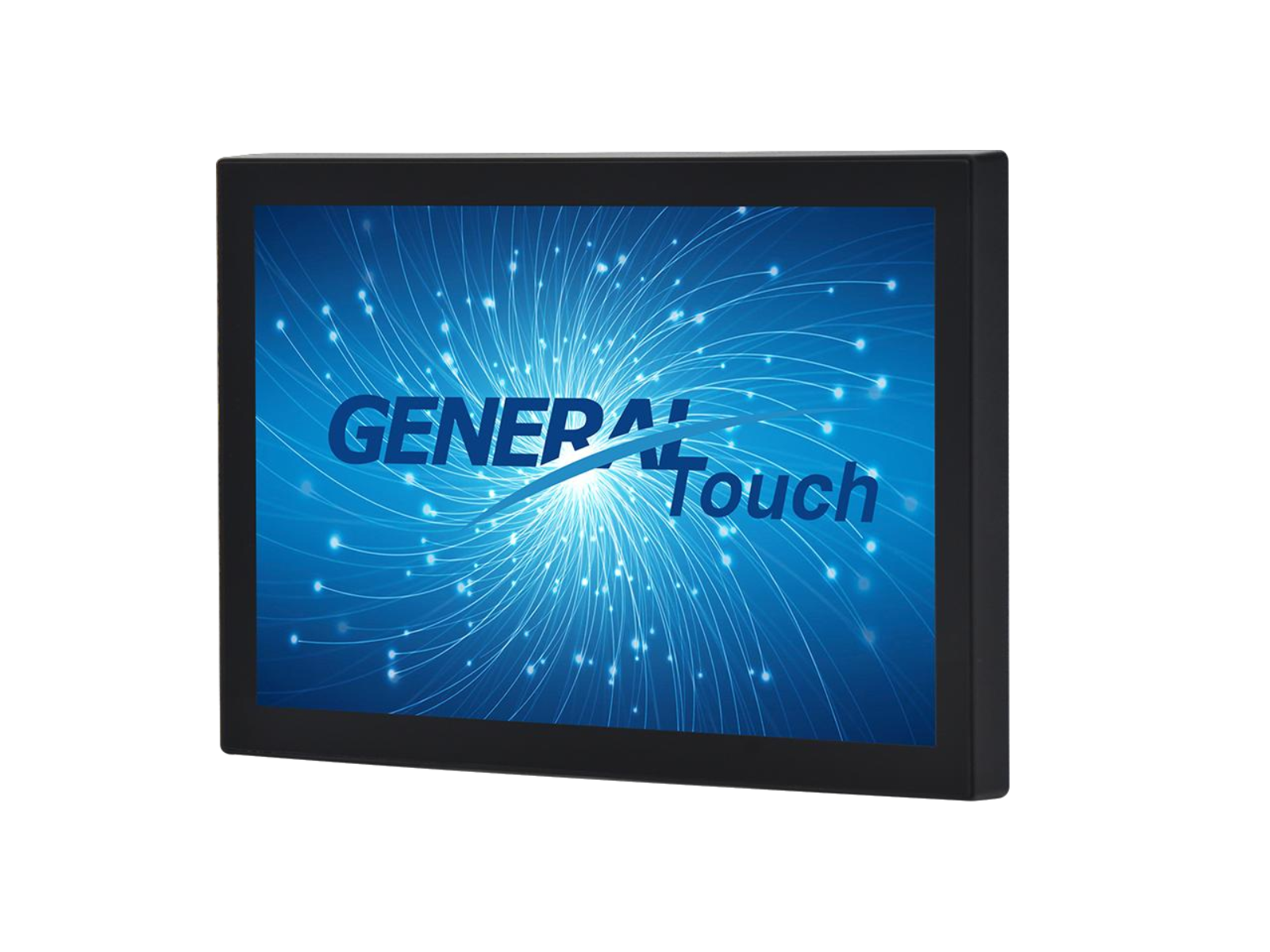

OTL15P 15.6″ PCAP Touchmonitor
| Name | 15.6 Inch Closed Frame Touchmonitor |
| Model | OTL15P |
| LCD Panel Parameters | |
| Display Technology | Active Matrix TFT-LCD With LED Backlight |
| Aspect Ratio | 16:9 |
| Active Area (W x H) | 344.16 mm × 193.59 mm |
| Native Resolution | 1920×1080 @ 60Hz |
| Response Time (Typ.) | 14 ms |
| Display Colors | 16.7 million |
| Luminance (Typ.) | 350 nits, with PCAP 332 nits |
| Contrast Ratio (Typ.) | 800:1 |
| Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 89°/89° |
| Vertical (up/down) CR≥10 89°/89° | |
| Touch Screen Parameters | |
| Touch Technology | PCAP |
| Cover Glass Treatment | Strengthened |
| Cover Glass Surface Treatment | Optional: Anti-Glare |
| Impact Resistance Level | IK07 |
| Active Area (W × H) | 345.2 mm × 194.5 mm ± 0.3 mm |
| Thickness (Total) | 4.4mm ± 0.2mm |
| Light Transmission | ≥83% |
| Response Time | 8ms |
| Touch Screen Interface | USB |
| Touch Point | 10 |
| Overall Parameters | |
| Case/Bezel Color | Black middle frame with black back cover |
| Mounting Options | VESA: 75mm × 75mm, 100mm × 100mm |
| Outline Dimensions（W×H×D） | 385.1mm × 234.4mm × 37.3mm |
| Power Supply | Input Voltage Range: +12V DC ± 5%, Coaxial power jack 2.5mm pin outer diameter |
| On Screen Display (OSD) | Control (Back): Power, Auto, Up, Down, Menu |
| Power Consumption | MAX: 12W |
| Speaker | Optional |
| Operating Altitude | ≤3000 m |
| Temperature Range | Operating: 0℃ to 40℃, storage: -20℃ to 60℃ |
| Humidity (Non Condensing) | Operating: 20% to 80%, storage: 10% to 90% |
| I/O | VGA, HDMI, USB (Type B, For Touch) |
| Accessories | Cables: VGA × 1, USB × 1, 1.5 m Length |
| Carton Box Dimensions | 479mm (L) × 387mm (W) × 390mm (H), 4 unit in one carton |
| Weight | Net: 3.0kg, Gross: 15kg |
| MTBF | 50,000 hours demonstrated |
| Agency Approvals | CCC, CE, FCC, UKCA |
| Warranty | 3 years |
|
Ordering Information |
||
|
Model |
Part Number |
Description |
|
OTL155-RC5C00-UH3F00-1.0 |
10202011084R | 15.6”, 16:9, 350nits, PCAP, USB, VGA & HDMI, Black |
| Drawings and Spec Sheet | ||
| Spec Sheet | Download | |
| Dimensional Drawing | Download | |
| User Manual | Download | |
