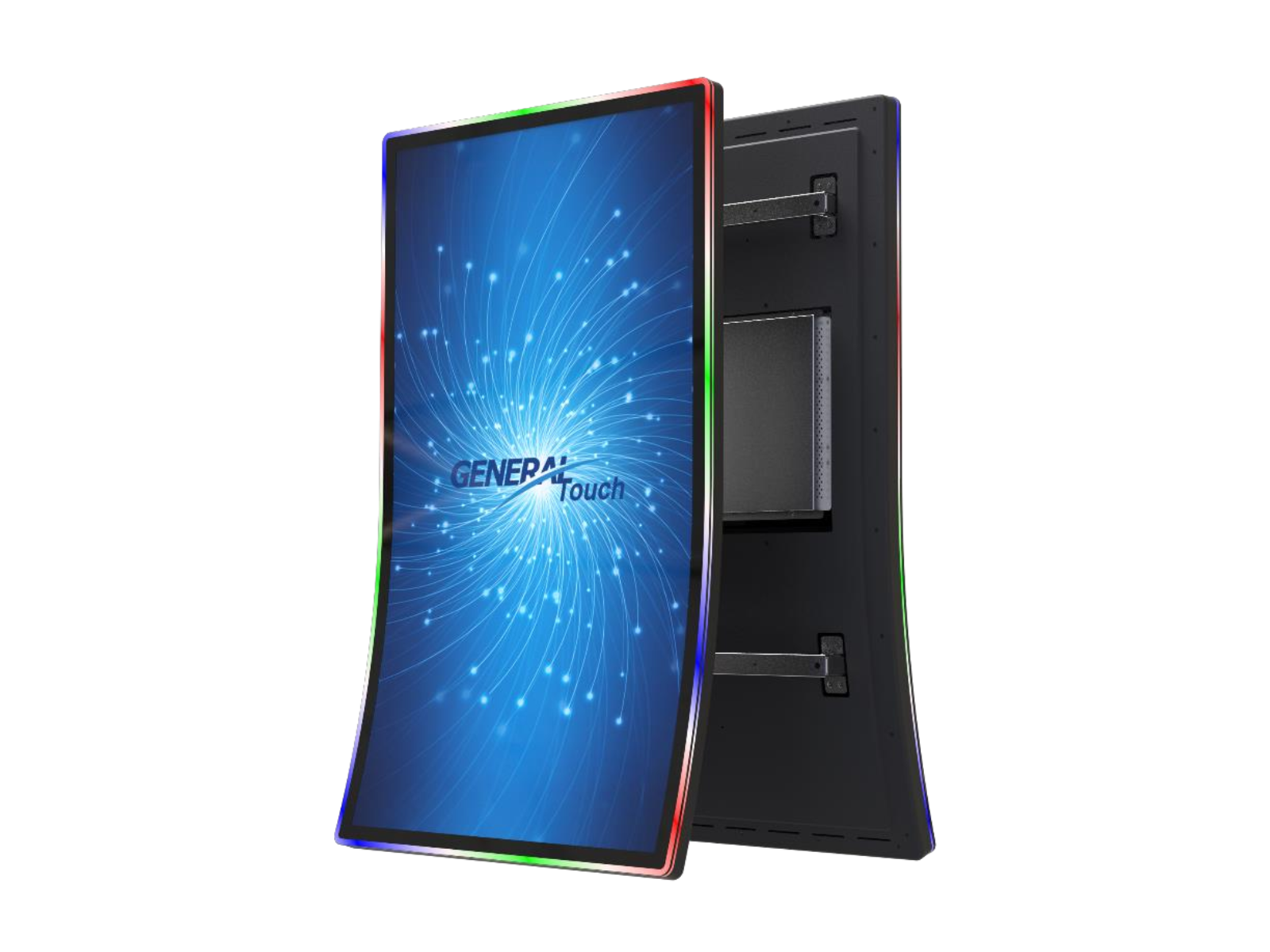

OTJ557 55″ 4K J Curved LED-edge

Brief Description:

◼ Curved shape, J design, unique and interactive motivation

◼ No hot spot, dark spot, dark corner, high level uniformity
◼ Rear fire LEDs, glow style
◼ 4K resolution
◼ PCAP powered by General Touch, quality assurance
◼ Plastic back cover, light and cost saving

◼ Well sealed non LED light leakage
◼ Closed frame, compatible with various application


Product Detail

Product Tags

Name

55 InchCurved Touchmonitor

Model

OTJ557

LCD Panel Parameters

Display Technology

  Active Matrix TFT-LCD with LED Backlight

Aspect Ratio

16 : 9

Active Area (W x H)

1209.6 × 680.4 mm

Native Resolution

3840 × 2160 @ 60 Hz

Response Time (Typ.)

8 ms

Display Colors

1.07 B

Luminance (Typ.)

500 nits

Contrast Ratio (Typ.)

4000 : 1

Viewing Angle (Typ.)

Horizontal (left/right) CR≥10 89°/89°

Vertical (up/down) CR≥10 89°/89°

Touch Screen Parameters

Touch Technology

Projected Capacitive (PCAP)

Surface Treatment

Tempered

-

Thickness(Total)

4.5 ± 0.5 mm

Light Transmission

≥83%

Response Time(Typ.)

10 ms

Touch Screen Interface

USB

Touch Point

10

Overall Parameters

Case/Bezel Color

Black

Radius

1500R

Mounting Options

VESA: 600 × 400 mm

Outline DimensionsW×H×D

1279.6 mm × 769.0 mm× 200.8 mm, curvature radius 1492mm

Power Supply

Input Voltage Range:
Monitor: +24 VDC ±5%, 4 PIN plug or 6 PIN mating Molex 3901-2060
RGB LED Lights: +12VDC ±5%, mating Molex 43025-0600
Optional LED controller (External): +12VDC ±5%, Coaxial power jack 2.5mm pin outer diameter

On Screen Display (OSD)

Control (remote): Power, Auto, Up, Down, Menu

Power Consumption (Max.)

150W ( Monitor without RGB LED Lights)
40W (RGB LED Lights)

Operating Altitude

≤3000 m

Temperature Range

Operating: 0to 40, storage: -20to 60

Humidity (Non Condensing)

Operating: 20% to 80%, storage: 10% to 90%

I/O

DVI, HDMI, DP, USB (Type B

Accessories

Cables: USB×1, 1.5m Length

Carton Box Dimensions

1445mm (L) ×340mm (W) ×940mm (H), 1 unit in one carton

Weight

Net: 34kg, Gross: 42kg

MTBF

50,000 hours demonstrated

LED Lights Color

Multicolor

LED Lights Location

4 LED lights bar (Front, Edge, Back)

LED Controller(external)

Optional

Agency Approvals

CE, FCC

Warranty

1 Year



Ordering Information

Part Name

Part Number

Description

OTJ557-RC5000-UD5440-2.0

10202020043R

55” “J type”, UHD, 16:9, 500nits, PCAP, USB, HDMI/DVI/DP, LED lights, front, edge, back



Drawings and Spec Sheet
Spec Sheet Download
